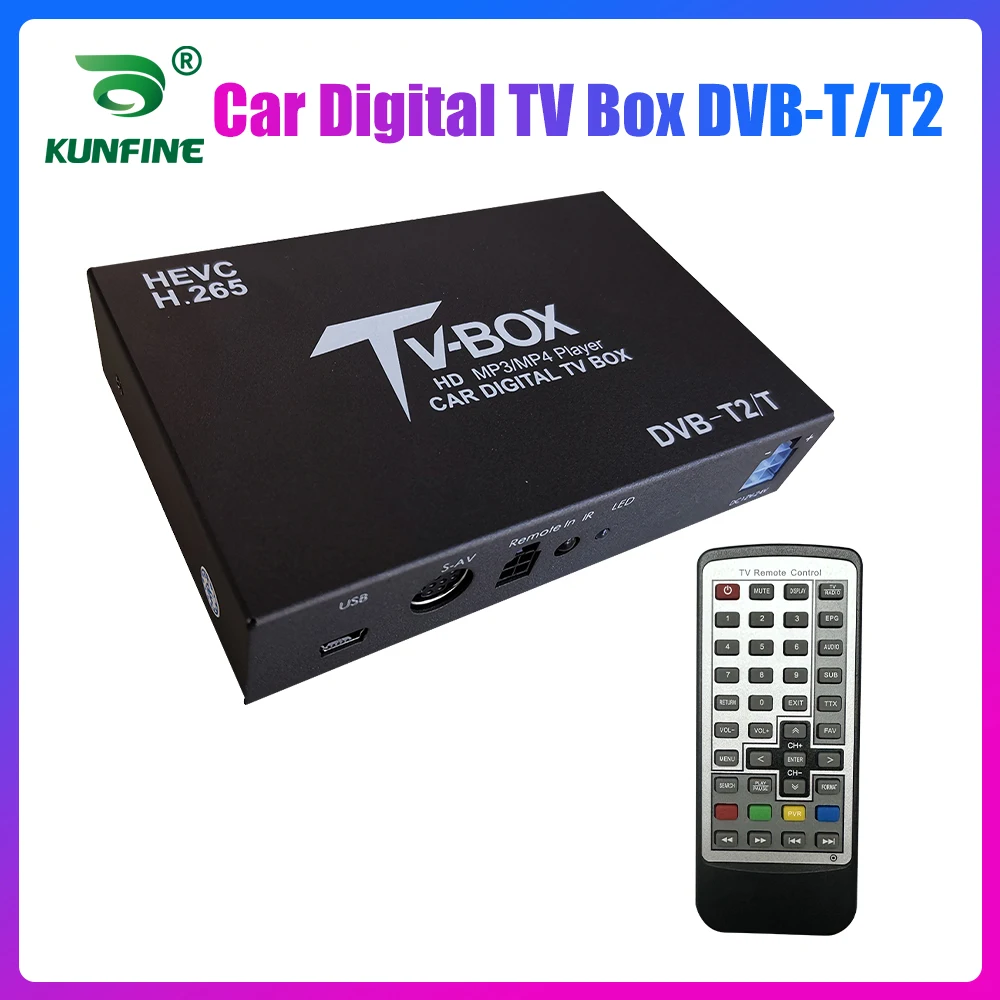

Car Digital TV Box DVB-T/T2 HEVC H. 265 HD Mobile Car TV Signal Box DVB-T DVB-T2 Tuner High Speed Strong Signal Receiver

Car Digital TV Box DVB-T/T2 HEVC H. 265 HD Mobile Car TV Signal Box DVB-T DVB-T2 Tuner High Speed Strong Signal Receiver

Technical Specification

Tuner Module : DVB-T EN300 744/DVB-T2 EN302 755 V1.3.1 Standard

RF Input: UHF: 470MHz～862MHz VHF:174MHz~230MHz

Input Impedance:75Ω

Signal Level: -80dBm～-10dBm

Connector Type: SMA type terminal

Channel Band Width: 6M/7M/8M

FFT size:1K,2K,4K,8K (normal), 8K (extended), 16K(normal),

16K (extended), 32K (normal), and 32K (extended)

Modulation: QPSK, 16QAM, 64QAM,128QAM,256QAM

Guard Interval: 1/128，1/32, 1/16, 19/256,1/8,19/128, 1/4

Pilot pattern: PP1 TO PP7

Servic type :Support both single PLP (Mode A)and Multiple PLP (Mode B)

Support Single Frequency Network(SFN) in accordance with ETSI TS

101191[6]

Transport Stream: MPEG-4AVC/H.264 HP@L4,MPEG-2 MP@HL/ML

HEVC (H.265)

Video Aspect Ratio: 4:3/16:9

Video System: PAL/NTSC

Video Output: 1±0.3Vpp

Video Resolution HD Resolution:720*576@25fps/720*480@30fps/HD

1920×1080P/1920×1080i

Audio Decoder: MPEG-2/HE_AAC(DD/DD +optional)

Audio Channel: R/L/ST

Audio Output: 1Vpp

Power Cable And Jack: 4Pins:

1. DC+12~24V Input

2. ACC

3. GND

4.NC

IR Extension Jack: For IR Extension Box

A/V Output Jack: Video RCA Jack×1,Audiop RCA Jack(R/L) ×2

Upgrade and Multimedia Port: USB

S-AV connector :

1. Input Jack :Video RCA Jack×1, Audio RCA Jack (R/L)×1

2. Output Jack: Video RCA Jack×2

ANT1 Input Jack: Female SMA Type

Operating Temperature: -10℃～+70℃

Storage Temperature: -40℃～+70℃

Power Supply: DC+10V～24V±10%

Power Consumption: Running: 4.5W Max

Standby: <0.25W
