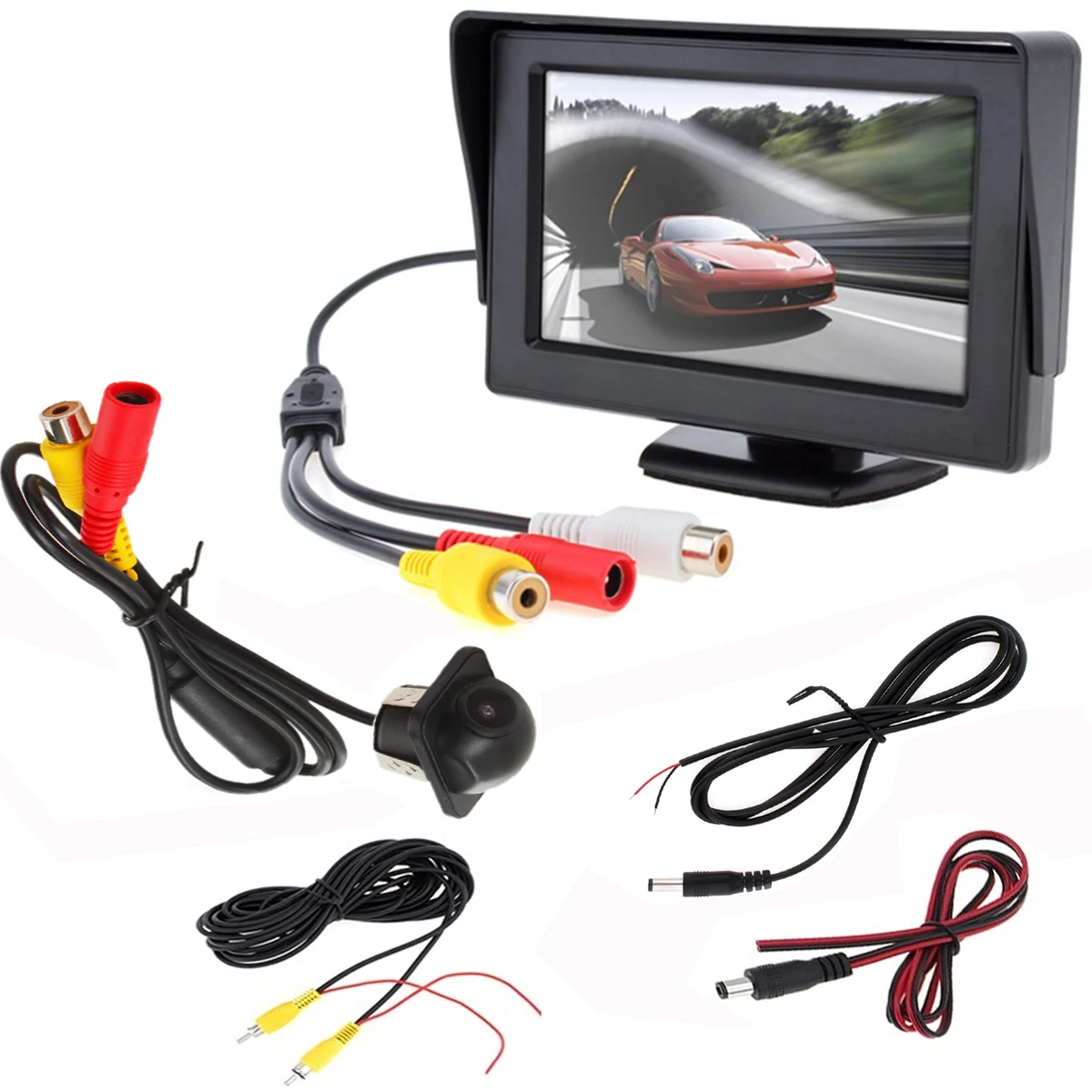

4.3 Inch HD 480 x 234 Resolution 2 Channel Video Input TFT LCD Car Monitor + 170 Wide Angle 420 TV Lines Car Rear View Camera

Description

• Material Type: ABS

• Waterproof Rate: IP68

• Resolution: 480 * 234

• System: NTSC / PAL

• Placement: In-Dash

• Camera Connection Type: Wired

• Night Vision Function: Yes

• Display Size: 4.3 Inch

• Horizontal Resolution: 420 TV lines

• Voltage: 12V – 24V

• Features:
  – 4.3″ Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space
  – Black screen when there is no signal input
  – Installation: install on the Dashboard
  – Fit all CCTV camera, car Reversing camera, car DVD player
  – Swivel function for truck, bus, trailer and so on

• Monitor:

• Color: Black

• Screen Size: 4.3″(16:9)

• Item Size: 122mm x 72mm x 16mm

• Resolution: 480(W) x RGB x 234(H)

• Power Supply: DC 6-32V

• Visible Area: 96mm x 54mm

• Power: <=3W

• Material: ABS, Electronic Components, Plastic

• 2-channel video input:V1 / V2 auto switching(V1 display first )

• Car Rear View Camera:

• Features:
  – Anti fog glass.
  – RCA connector.
  – High grade of waterproofing: IP68.
  – High-definition and 170 degree wide viewing angle.
  – Applicable to variety of vehicles, like car, truck, RV, etc.
  – Snap-in design, it is easy to install.
  – Its simple and modest design and small size won’t draw any attention.
  – It helps to avoid incidents and accidents abrasion well.

• Lens: 13.5mm

• View Angle: 170 degree

• Minimum Illumination: 0.5 Lux

• Effective Pixels: NTSC:510(H) x 492(V)

• Power: DC 12V

• Sync. System: Internal

• S/N Ratio: >48dB

• Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds

• Video Output: 1.0Vpp, 75Ohm

• White Balance: Auto

• Current Consumption: 90mA

• Image Reverse: Left-right mirror

• Operating Temperature: -20 to + 70 degree celsius, 95% RH maximum

• Storage Temperature: -40 to + 100 degree celsius, 95% RH maximum

• Shell Material: Plastic

• Lens Material: Plastic + Glass

• Video Line Length: 6m

• Color: Black

• Power Supply Cable Length: 1.2m

• Product Weight: 30g

• Installation:
  – Connect the yellow video output connector to terminal display device.
  – Connect the black power input connector to power output device.

• Place of Application: Car

• Note:
  Please Connect the Rearview camera’s power cable with Reversing lamp, and connect camera’s video cable with LCD’s yellow cable (Video V1),then the LCD will show Camera’s video when you are Reversing, and stop playing movie (auto switching)

• Package Weight: 349.0 G / 12.31 Ounces

• Package Dimensions (L*W*H): 155*120*50 MM / 6.10*4.72*1.97 Inches

• Retail Packaging: Yes, General Box

Package include

• Package Including:

• 1 x 4.3″ TFT LCD Car Color Monitor

• 1 x Power Cable

• 1 x Manual

• 1 x Car Rear View Camera

• 1 x Video Cable

• 1 x Power Cable

• 1 x Hole Saw(801: 20mm 1830: 18.50MM)

• 1 x User Manual
